Fiber optic cables have entirely changed how data is sent around the world. They provide data transmission capacities of high speed and high capacity that are unmatched by ordinary copper cables. However, the complexity of fiber optic cabling necessitates a systematic approach to installation and maintenance. The fiber optic color coding, which guarantees correct handling and identification of individual fibers within a cable, is an essential component of this system. This blog will examine the fiber optic color chart code, its significance, the ins and outs of single-mode and multi-mode fibers, and connector color codes. Along with responding to some commonly asked issues, we will also review the advantages of expert cabling solutions.

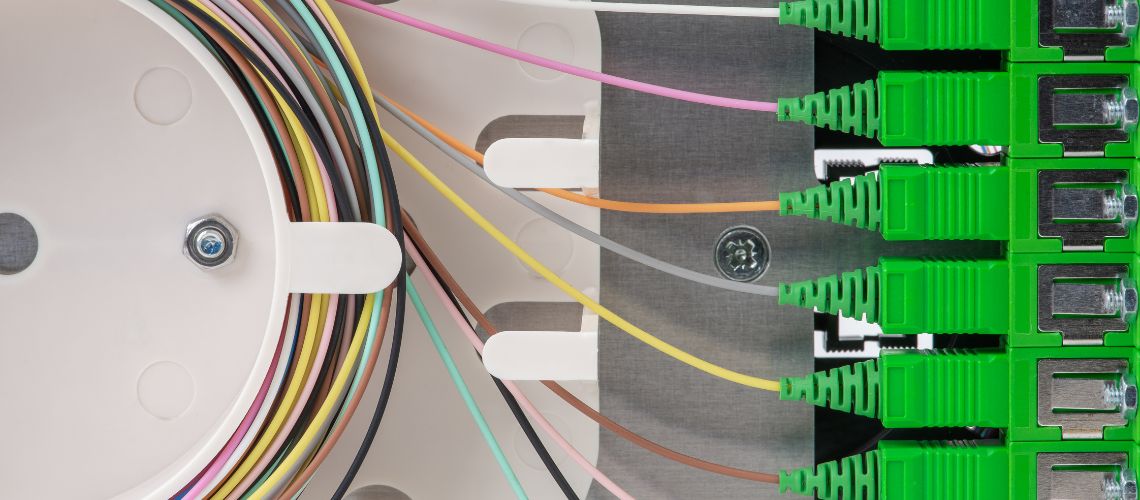

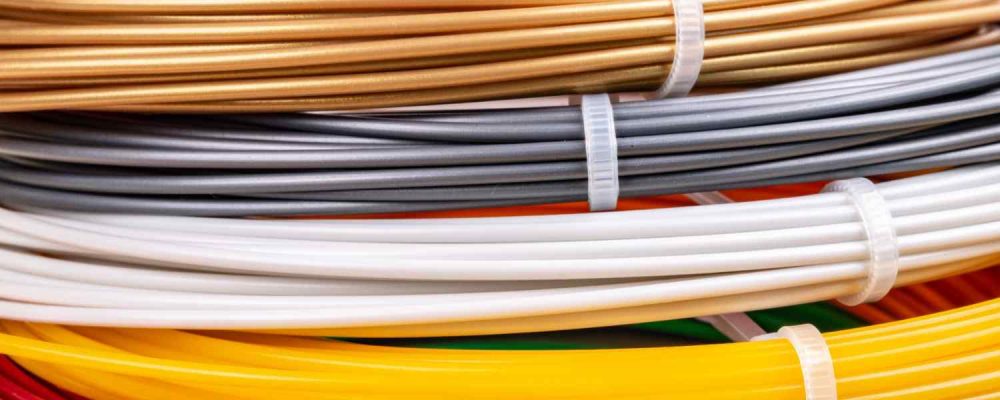

A fiber optic color code is a standardized color scheme that identifies individual fibers within a fiber optic cable. Each fiber is coated with a specific color, making it easy to distinguish between them during installation, splicing, and maintenance. This color coding is essential for ensuring the correct fibers are connected and terminated, minimizing errors, and improving efficiency.
Color coding in fiber optic cables serves several critical purposes:
Color-coded fibers simplify the installation process by making identifying and organizing each fiber within a bundle easy. This visual differentiation helps technicians quickly connect and manage fibers, reducing the time required for installation.
Precision is crucial when splicing fiber optic cables. Color coding ensures that technicians can match and splice corresponding fibers accurately, maintaining the signal’s integrity and ensuring optimal performance.
Color coding significantly reduces the likelihood of errors during installation and maintenance. Technicians can quickly identify and trace specific fibers, ensuring that connections are made correctly and avoiding costly mistakes.
In environments with multiple fiber optic cables and ports, color coding helps maintain clear separation and organization. This clarity is essential in data centers and telecommunications facilities where numerous connections are managed.
Single-mode fiber optic cables are designed for long-distance communication and high-speed data transfer. The color code for single-mode fibers typically follows the TIA-598-C standard, which specifies the colors for the first twelve fibers as follows:
For cables with more than twelve fibers, the color sequence repeats with the addition of a binder or tube to indicate the group.
Multi-mode fiber optic cables are used for shorter distances and are commonly found in LANs, data centers, and other local networking environments. The color code for multi-mode fibers also follows the TIA-598-C standard and uses the same colors as single-mode fibers for the first twelve fibers:
Again, for cables with more than twelve fibers, the color sequence repeats with additional binders or tubes to distinguish the groups.
In addition to the fiber color code, connectors used in fiber optic cabling also follow specific color codes to indicate the type of fiber and connector. This helps technicians quickly identify the appropriate connectors for their specific applications. The standard color codes for connectors are:
Blue: Single-mode connectors (UPC – Ultra Physical Contact)
Green: Single-mode connectors (APC – Angled Physical Contact)
Beige: Multi-mode connectors (OM1/OM2 – 62.5/125µm or 50/125µm)
Aqua: Multi-mode connectors (OM3/OM4 – 50/125µm)
These color codes help ensure that the correct connectors are used with the appropriate fiber types, maintaining the network’s performance and reliability.
Individual fibers are often grouped into tubes or bundles within a fiber optic cable, each of which is also color-coded. The inner fiber color code follows the same TIA-598-C standard, making it consistent and easy to follow. Each tube or bundle is identified by its own color, and within each tube, the fibers follow the standard color sequence. This layered approach to color coding helps maintain organization and clarity, especially in cables with a large number of fibers.
While the TIA-598-C standard provides a comprehensive framework for fiber optic color coding, there are some special considerations and exceptions to be aware of:
Custom Color Codes: Sometimes, organizations may use custom color codes to meet specific requirements or preferences. It’s essential to document these custom codes clearly to avoid confusion.
Legacy Systems: Older installations may use different color codes, particularly if they predate the TIA-598-C standard. Technicians working with legacy systems must know these differences and consult documentation.
International Variations: Different countries or regions may have their standards or variations on the TIA-598-C standard. When working internationally, it’s essential to understand and follow the local standards.

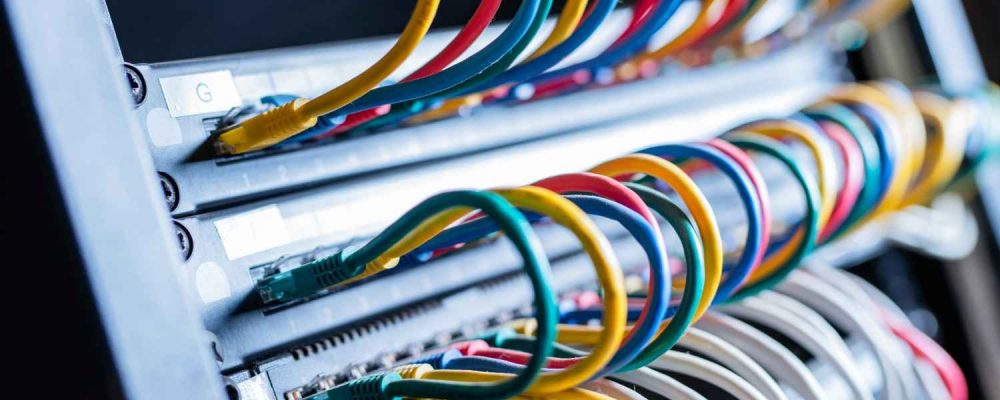

Installing and maintaining fiber optic networks can be complex and challenging. Professional cabling solutions offer several advantages that can ensure the success and reliability of your network.
Professional cabling solutions are designed to meet the highest performance and reliability standards. Experienced technicians use high-quality materials and follow best practices to ensure your network operates efficiently.
Every organization has unique networking needs. Professional cabling providers can design and implement customized solutions tailored to your requirements. This customization ensures that your network infrastructure supports your business goals and can adapt to future growth.
Professional cabling companies employ trained and certified technicians who have the expertise and experience to handle complex installations and maintenance tasks. These technicians stay up-to-date with the latest industry standards and technologies, ensuring that your network is in capable hands.
Investing in professional cabling solutions can future-proof your network infrastructure. With the rapid advancement of technology, it’s essential to have a network that can accommodate future upgrades and expansions. Professional cabling solutions are designed with scalability and flexibility, allowing your network to grow and evolve with your business.
When it comes to professional cabling solutions, Network Drops is a trusted provider with a proven track record of delivering high-quality services. Our team of experienced technicians is committed to ensuring the success of your network infrastructure. We offer a range of services, including fiber optic cabling, network design, and installation, to meet the needs of businesses of all sizes.
At Network Drops, we understand the importance of a reliable and efficient network. That’s why we use only the best materials and follow industry best practices to ensure your network performs at its best. Whether setting up a new network or upgrading an existing one, you can count on us to provide the expertise and support you need.
In conclusion, understanding and using the fiber optic color code is essential for successfully installing and maintaining fiber optic networks. By following standardized color codes and employing professional cabling solutions, you can ensure the reliability and efficiency of your network infrastructure. Whether you’re dealing with single-mode or multi-mode fibers, the fiber optic color chart provides a valuable tool for effectively organizing and managing your fiber optic cables.
The cost of fiber optic cable installation can vary widely depending on several factors, including the cable’s length, the installation’s complexity, and the project’s specific requirements. On average, installation costs can range from $1 to $6 per foot, but this can increase for more complex installations or specialized requirements. It’s best to get a detailed quote from a professional cabling provider to understand the specific costs of your project.
The purpose of the fiber optic color code is to provide a standardized method for identifying individual fibers within a cable. This color coding helps ensure proper installation, splicing, and maintenance of fiber optic networks, reducing the risk of errors and improving efficiency.
Memorizing the fiber color code can be more accessible with mnemonic devices or visual aids. One common mnemonic for the standard TIA-598-C color code sequence is: “Bad Boys Rape Our Young Girls But Violet Gives Willingly.” Each initial corresponds to a color in the sequence: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, and Aqua.
Fiber optic cables use the TIA-598-C standard color code for the first twelve fibers: Blue, Orange, Green, Brown, Slate, White, Red, Black, Yellow, Violet, Rose, and Aqua. For cables with more than twelve fibers, the sequence repeats with additional binders or tubes to distinguish the groups.
The connector color codes indicate different core sizes and types for multi-mode fibers. Beige connectors are typically used for OM1 (62.5/125µm) and OM2 (50/125µm) multi-mode fibers, while aqua connectors are used for OM3 and OM4 (both 50/125µm) multi-mode fibers. These color codes help ensure the correct connectors are used with the appropriate fiber types.
